Description

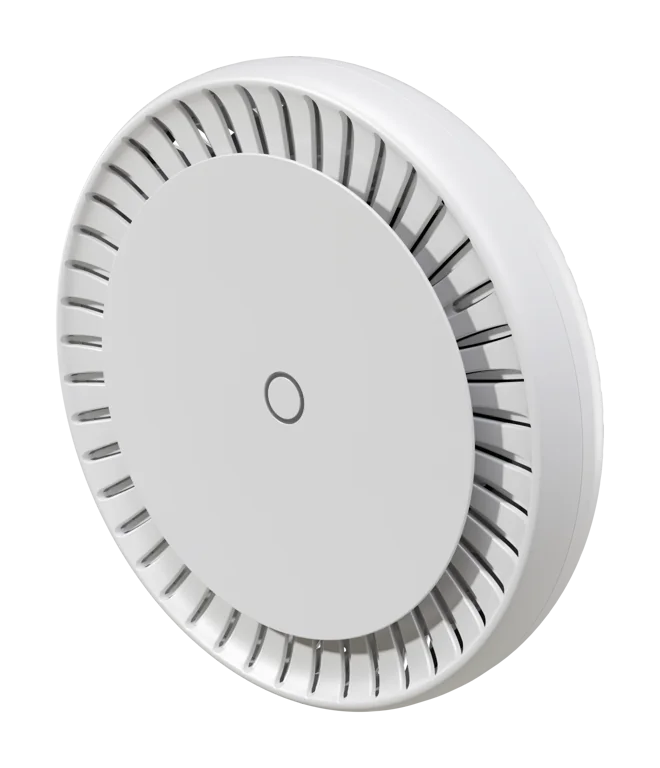

Buy MikroTik cAP LTE12 ax in Singapore
A powerful ceiling access point that offers true Wi-Fi 6 mobility for your pop-up business – now with a CAT12 LTE modem!
MikroTik cAP LTE12 ax is part of MikroTik’s LTE & 5G Networking range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik cAP LTE12 ax specifications
| Product code | cAPGi-5HaxD2HaxD&EG12-EA |
|---|---|
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 – 1800) MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-6010 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 50°C |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 34 W |
| Max power consumption without attachments | 13 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 0.6 A |
| High voltage PoE-Out current limit | 0.4 A |
| Max total out (A) | 0.6 A |
| Total output current | 0.6 |
| Total output power | 22.8 |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz) |
| LTE Category | 12 (600Mbps Downlink, 150Mbps Uplink) |
| MIMO DL | 4×4 |
| MIMO UL | 1×1 |
| LTE FDD bands | 1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) 40 (2300MHz) 41 (2500MHz) |
| TAC | 86056104 |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 6 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5022 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Number of SIM slots | 1 Modem (Micro SIM) |
| CPU temperature monitor | Yes |
| Mode button | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Need help choosing MikroTik hardware?
Tell Uncle Storage about your internet connection, user count, port speeds, PoE devices, wireless coverage and site-to-site requirements. We can help shortlist a practical MikroTik setup before you confirm your enquiry.
