Description

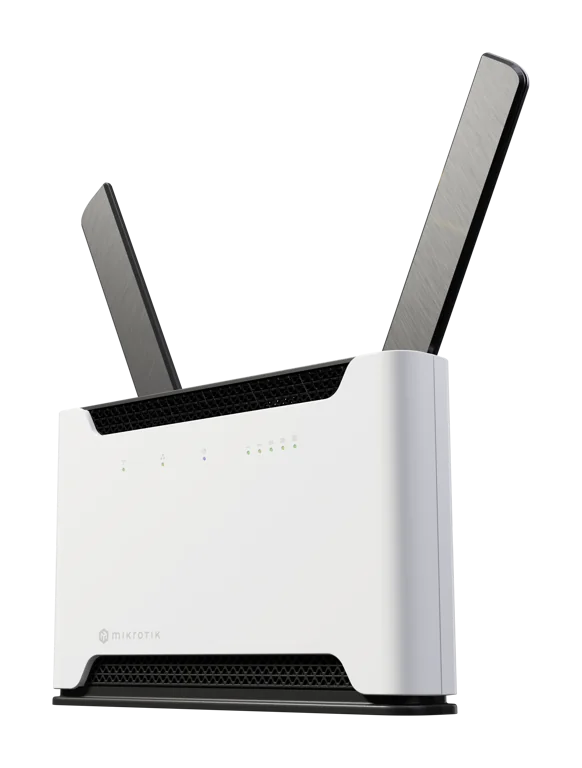

Buy MikroTik Chateau LTE18 ax in Singapore
The best home AP just got even better. Generation 6 version of the Chateau LTE18. Much faster wireless, improved CPU, and now – with 2.5 Gigabit Ethernet!
MikroTik Chateau LTE18 ax is part of MikroTik’s Indoor Wireless and LTE & 5G Networking range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik Chateau LTE18 ax specifications
| Product code | S53UG+5HaxD2HaxD-TC&EG18-EA |
|---|---|
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 -1800) MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-6010 |
| Dimensions | 240 x 156 x 44 mm |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 65°C |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 19 W |
| Max power consumption without attachments | 16 W |
| Cooling type | Passive |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz) |
| LTE Category | 18 (1.2Gbps Downlink, 150Mbps Uplink) |
| MIMO DL | 4×4 |
| MIMO UL | 1×1 |
| LTE FDD bands | 1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) 40 (2300MHz) 41 (2500MHz) |
| TAC | 86981604 |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 6 |
| Wireless 5 GHz chip model | QCN-5052 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| 10/100/1000 Ethernet ports | 4 |
| Number of 2.5G Ethernet ports | 1 |
| Number of SIM slots | 1 Modem (Micro SIM) |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Need help choosing MikroTik hardware?
Tell Uncle Storage about your internet connection, user count, port speeds, PoE devices, wireless coverage and site-to-site requirements. We can help shortlist a practical MikroTik setup before you confirm your enquiry.
