Description

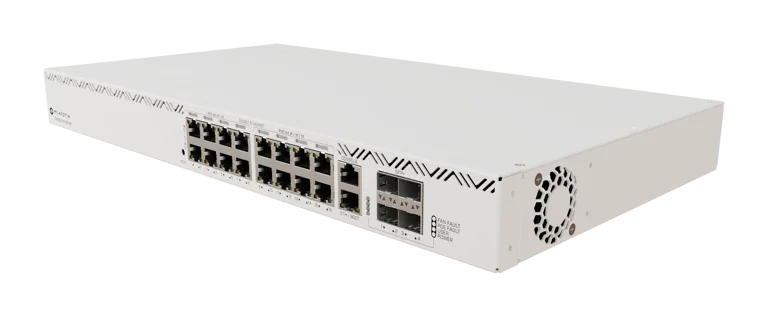

Buy MikroTik CRS320-8P-8B-4S+RM in Singapore
The first MikroTik high-power PoE++ switch – for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables – create a cleaner space with PoE++!
MikroTik CRS320-8P-8B-4S+RM is part of MikroTik’s Network Switches range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik CRS320-8P-8B-4S+RM specifications
| Product code | CRS320-8P-8B-4S+RM |
|---|---|
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| RouterOS license | 5 |
| Operating System | RouterOS v7 / SwitchOS |
| Size of RAM | 256 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -10°C to 50°C |
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 600W (1150W with additional PSU) |
| Max power consumption without attachments | 36 W |
| Cooling type | 3 fans |
| PoE-out ports | Ether1-Ether8 (af/at), Ether9-Ether16 (bt) |
| PoE out | 802.3af/at/bt |
| High voltage PoE-Out current limit | 560 (af/at) / 1667 (bt) mA |
| Max total out (A) | 17.82 A |
| Total output current | 17.82 |
| Total output power | 963 |
| 10/100/1000 Ethernet ports | 17 |
| Number of 1G Ethernet ports with PoE-out | 16 |
| SFP+ ports | 4 |
| Serial console port | RJ45 |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Need help choosing MikroTik hardware?
Tell Uncle Storage about your internet connection, user count, port speeds, PoE devices, wireless coverage and site-to-site requirements. We can help shortlist a practical MikroTik setup before you confirm your enquiry.
