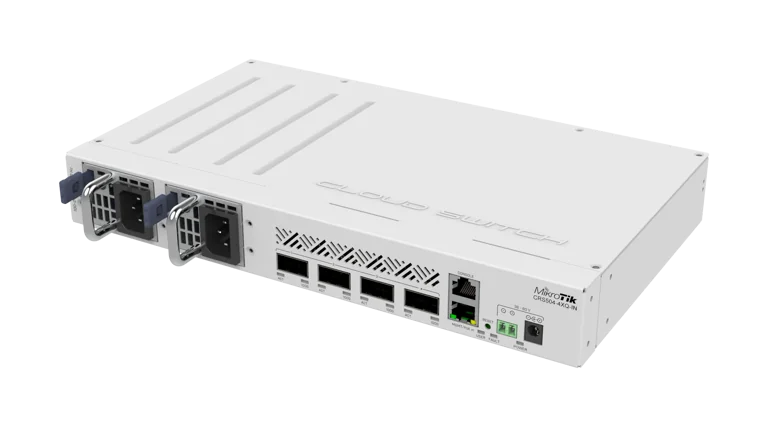

Buy MikroTik CRS504-4XQ-IN in Singapore
Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.
MikroTik CRS504-4XQ-IN is part of MikroTik’s Network Switches range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik CRS504-4XQ-IN specifications
| Product code | CRS504-4XQ-IN |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | 98DX4310 |
| Dimensions | 320 x 185 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 36-57 V |
| Number of PSU slots | 2 |
| 2-pin terminal input Voltage | 36-57 V |
| Frequency (Hz) | 47-63 |
| Max power consumption | 41 W |
| Max power consumption without attachments | 25 W |
| PoE in | 802.3 bt |
| Cooling type | 2 fans |
| PoE in input Voltage | 43-57 V |
| 10/100 Ethernet ports | 1 |
| Number of 100G QSFP28 ports | 4 |
| Serial console port | RJ45 |
| PCB temperature monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
