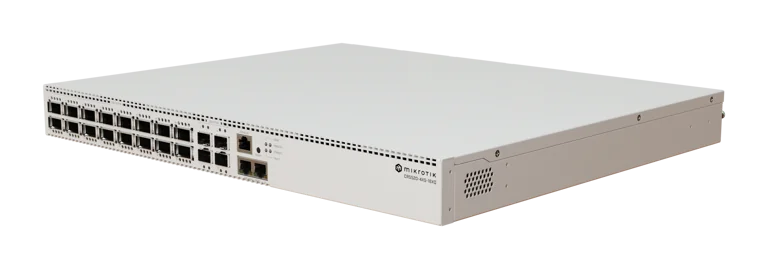

Buy MikroTik CRS520-4XS-16XQ-RM in Singapore
An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!
MikroTik CRS520-4XS-16XQ-RM is part of MikroTik’s Network Switches range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik CRS520-4XS-16XQ-RM specifications
| Product code | CRS520-4XS-16XQ-RM |
|---|---|
| Architecture | ARM 64bit |
| CPU | AL52400 |
| CPU core count | 4 |
| CPU nominal frequency | 2 GHz |
| CPU Threads count | 4 |
| Switch chip model | 98CX8410 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 50°C |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 150 W (220 W with both PSUs) |
| Max power consumption without attachments | 123 W |
| Cooling type | 4 fans |
| Number of 1G/2.5G/5G/10G Ethernet ports | 2 (supported: 10M/100M/1G/10G) |
| Number of 25G SFP28 ports | 4 |
| Number of 100G QSFP28 ports | 16 |
| Serial console port | RJ45 |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
