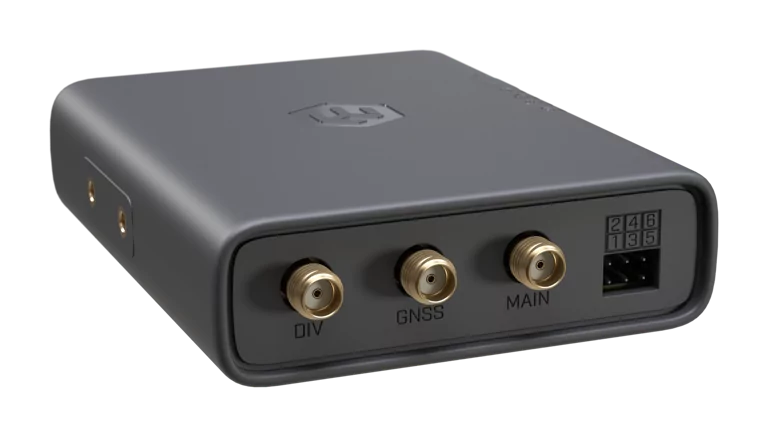

Buy MikroTik KNOT Embedded LTE4 Global in Singapore
KNOT Embedded LTE4 is now available in a Global (EG25-G) version with expanded LTE band support for North America and other international markets. Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines – perfect for all kinds of industrial automation.
MikroTik KNOT Embedded LTE4 Global is part of MikroTik’s IoT Networking and LTE & 5G Networking range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik KNOT Embedded LTE4 Global specifications
| Product code | EG25-G&KNe |
|---|---|
| Architecture | ARM 32bit |
| CPU | Cortex A7 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 256 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 2 (PoE-IN, USB-C) |
| Max power consumption | 6 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
| USB C input Voltage | 5 V |
| 2G Category | Class12 |
| 2G bands | 2 (1900MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) 2 (1900MHz) 4 (1700MHz) 5 (850MHz) 6 (850 MHz) 8 (900MHz) 19 (800 MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| MIMO DL | 2×2 |
| MIMO UL | 1×1 |
| LTE FDD bands | 1 (2100MHz) 2 (1900MHz) 3 (1800MHz) 4 (1700MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 12 (700MHz) 13 (700 MHz) 18 (800 MHz) 19 (800 MHz) 20 (800MHz) 25 (1900MHz) 26 (850MHz) 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) 39 (1900MHz) 40 (2300MHz) 41 (2500MHz) |
| TAC | 01673800 |
| 10/100/1000 Ethernet ports | 1 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 1 |
| Number of SIM slots | 1 Modem (Nano SIM) |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Bluetooth version | 5.4 |
| GPS RF connector type | SMA |
| eSIM | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
