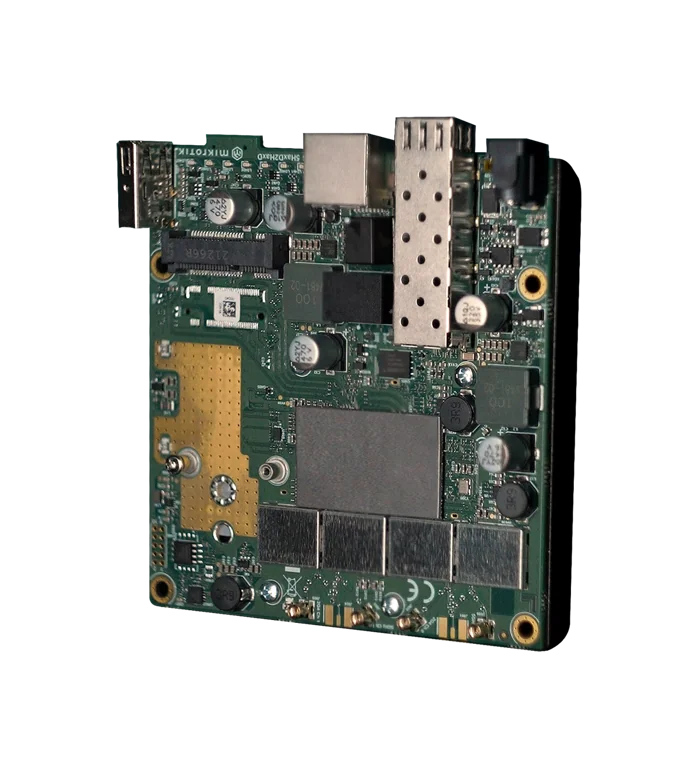

Build your own custom outdoor Wi-Fi 6 access point or CPE! This modular wireless router comes with handy MMCX connectors, allowing you to create versatile omnidirectional access points and powerful point-to-point links.
MikroTik L23UGSR-5HaxD2HaxD is part of MikroTik’s Router Boards range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik L23UGSR-5HaxD2HaxD specifications
| Product code | L23UGSR-5HaxD2HaxD |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 25 W |
| Max power consumption without attachments | 12 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| 10/100/1000 Ethernet ports | 1 |
| SFP ports | 1 (2.5G supported) |
| Number of SIM slots | 1 Modem (Nano SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1.5 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification | CE, FCC, IC, ROHS |
| IP | 00 |
