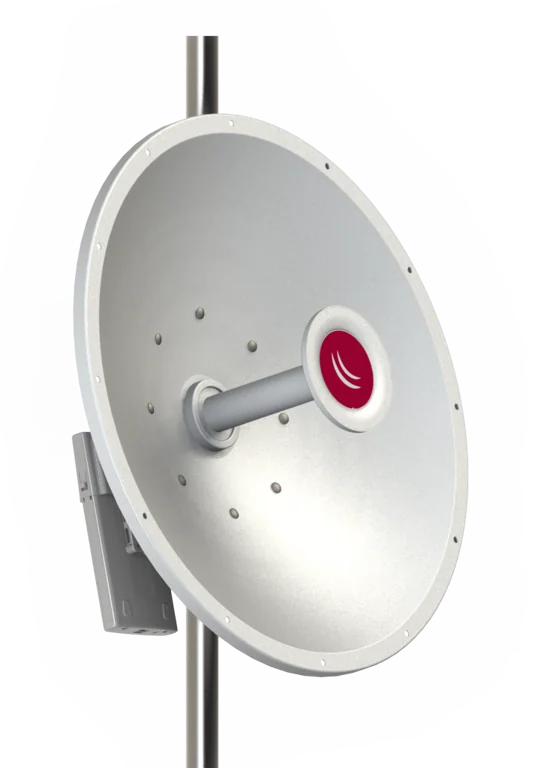

Buy MikroTik mANT30 PA in Singapore
Parabolic dish antenna for 5GHz, 30dBi gain. This model includes precision alignment mount
MikroTik mANT30 PA is part of MikroTik’s Network Antennas range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik mANT30 PA specifications
| Product code | MTAD-5G-30D3-PA |
|---|---|
| Beamwidth | +/-2.5 deg |
| Connector | 2x RP-SMA Female (outside thread) |
| Cross Polarization | >40 dB |
| Diameter x Depth | 70 x 45cm (27.5 x 17.8in) |
| Elevation adjustment range | +/- 15 deg |
| Frequency Range | 4.7-5.875 GHz |
| Front-to-Back Ratio | >30 dB |
| Impedance | 50 ohms |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| Packaged size | 73x73x20cm (29x29x8in) |
| Packaged weight | 8.4 kg (18,5) |
| Polarization | Vertical and Horizontal |
| Pole Mount Diameter Range | 3 to 10cm (1.2 to 3.9in) |
| Port to Port Isolation | >40dB min |
| Power Rating | 100W |
| Reflector | Aluminum |
| Standards | EN 302 326 DN1, DN2, DN3, DN5 |
| Tested ambient temperature | -50°C to 80°C(-49°F to 158°F) |
| VSWR | ≤ 1.4 typ, ≤ 1.8 max |
| Weight | 5.7kg (12.6 lbs) |
| Wind Load (125 mph) | 181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s |
| Wind Survivability | 201kph (125mph) |
| Certification | CE, ROHS |
