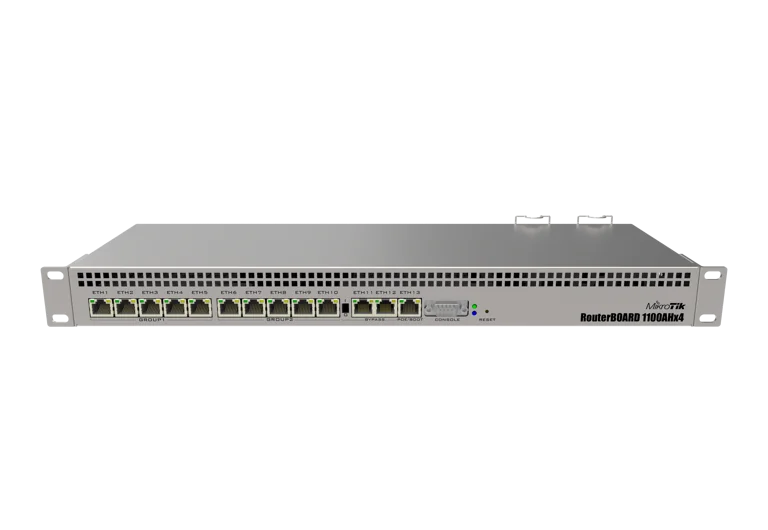

Buy MikroTik RB1100AHx4 in Singapore
Powerful 1U rackmount router with 13x Gigabit Ethernet ports
MikroTik RB1100AHx4 is part of MikroTik’s Ethernet Routers range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik RB1100AHx4 specifications
| Product code | RB1100x4 |
|---|---|
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| CPU Threads count | 4 |
| Switch chip model | RTL8367 |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 20-57 V |
| 10/100/1000 Ethernet ports | 13 |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
