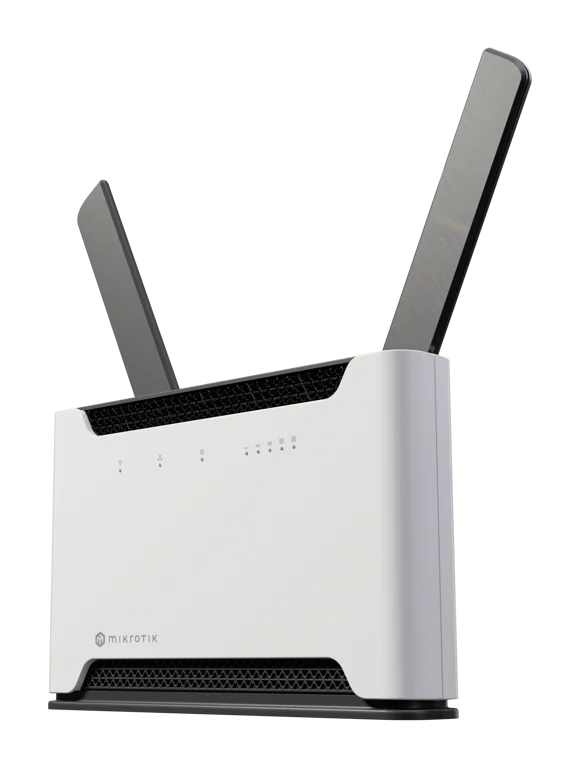

Buy MikroTik Chateau PRO ax in Singapore
A Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU.
MikroTik Chateau PRO ax is part of MikroTik’s Indoor Wireless range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik Chateau PRO ax specifications
| Product code | H53UiG-5HaxQ2HaxQ |
|---|---|
| Architecture | ARM 64bit |
| CPU | IPQ-8072A |
| CPU core count | 4 |
| CPU nominal frequency | 2208 MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-8072 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Wireless 2.4 GHz Max data rate | 1148 Mbit/s |
| Wireless 2.4 GHz Number of chains | 4 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 5 |
| Wireless 2.4 GHz chip model | QCN-5024 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz Number of chains | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 6 |
| Wireless 5 GHz chip model | QCN-5054 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX3600 |
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 55 W (Networked standby (HiNA) ≤ 8 W) |
| Max power consumption without attachments | 18 W |
| Cooling type | Passive |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 600 mA |
| High voltage PoE-Out current limit | 500 mA |
| Max total out (A) | 0.600 A |
| Total output current | 0.600 |
| Total output power | 22.8 |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
