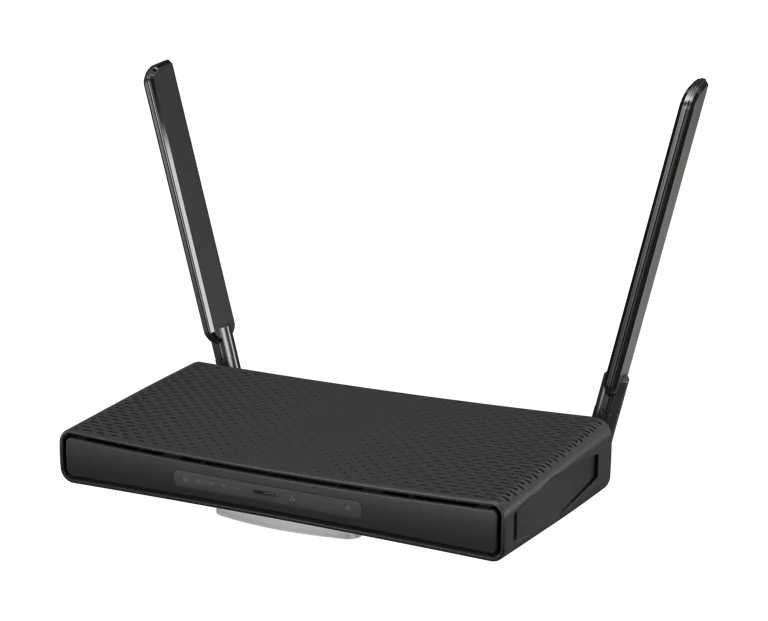

Buy MikroTik hAP ax³ in Singapore
Our top-of-the-line AX home access point. With all the processing power and speed your household might ever need. Gen 6 wireless, 2.5 Gigabit Ethernet, PoE, WPA3, and more!
MikroTik hAP ax³ is part of MikroTik’s Indoor Wireless range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik hAP ax³ specifications
| Product code | C53UiG+5HPaxD2HPaxD |
|---|---|
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 – 1800) MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-6010 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 3.3 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5052 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX1800 |
| 10/100/1000 Ethernet ports | 4 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Number of 2.5G Ethernet ports | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 38 W |
| Max power consumption without attachments | 15 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
| PoE-out ports | Ether 1 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 0.625 A |
| Max total out (A) | 0.625 A |
| Total output current | 0.625 |
| Total output power | 15 |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
| CPU temperature monitor | Yes |
| Mode button | Yes |
Need help choosing MikroTik hardware?
Tell Uncle Storage about your internet connection, user count, port speeds, PoE devices, wireless coverage and site-to-site requirements. We can help shortlist a practical MikroTik setup before you confirm your enquiry.
