Description

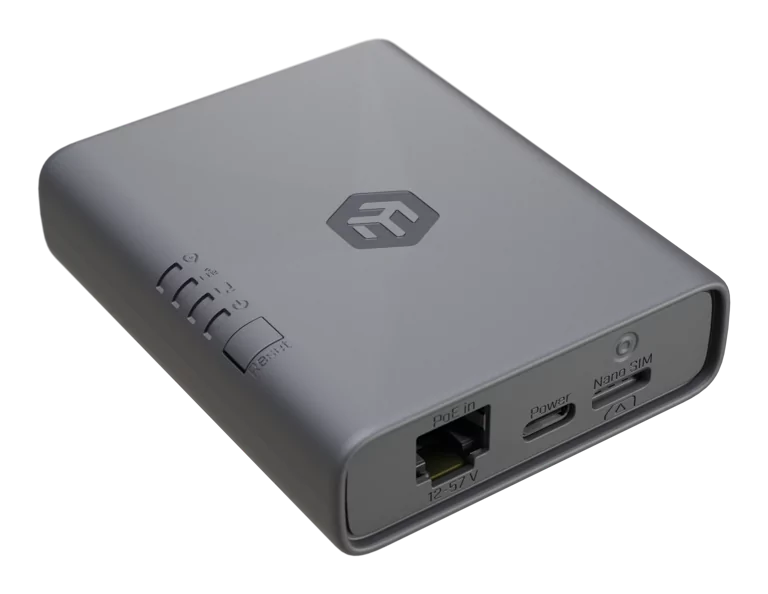

Buy MikroTik KNOT Embedded LTE4 in Singapore
Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines – perfect for all kinds of industrial automation.
MikroTik KNOT Embedded LTE4 is part of MikroTik’s IoT Networking and LTE & 5G Networking range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik KNOT Embedded LTE4 specifications
| Product code | EC25-EU&KNe |
|---|---|
| Architecture | ARM 32bit |
| CPU | CPU ARM 32-bit Cortex A7 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 512 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 2 (PoE-IN, USB-C) |
| Max power consumption | 7 W |
| Max power consumption without attachments | 7 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
| USB C input Voltage | 5 V |
| 2G Category | Class12 |
| 2G bands | 3 (1800MHz) 8 (900MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) 8 (900MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| MIMO DL | 2×2 |
| MIMO UL | 1×1 |
| LTE FDD bands | 1 (2100MHz) 3 (1800MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28A (700 MHz) |
| LTE TDD bands | 38 (2600MHz) 40 (2300MHz) 41 (2500MHz) |
| TAC | 86554604 |
| 10/100/1000 Ethernet ports | 1 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 1 |
| Number of SIM slots | 1 Modem (Nano SIM) |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Bluetooth version | 5.4 |
| GPS RF connector type | SMA |
| eSIM | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
