Description

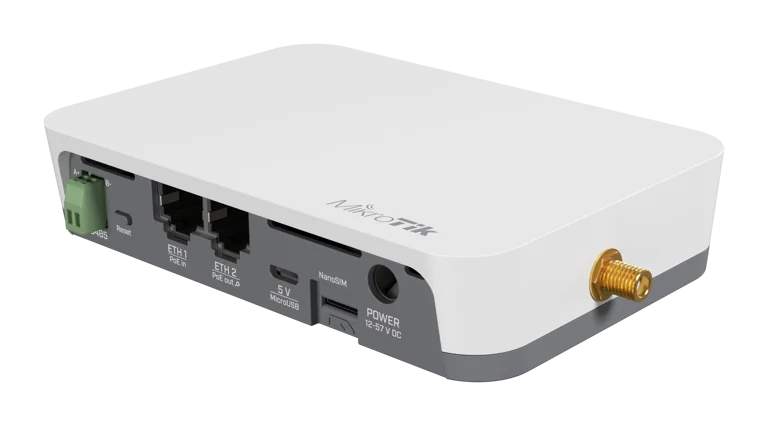

Buy MikroTik KNOT LR9G kit in Singapore
An industrial-grade IoT gateway for smart asset tracking, remote monitoring, and efficient automation – now with enhanced LoRa® reception, concurrent GPS + LTE CAT-M, and a lower price. This is the 915 MHz version.
MikroTik KNOT LR9G kit is part of MikroTik’s IoT Networking range. It is suitable for Singapore businesses, technical teams, service providers and power users building reliable network infrastructure. Add it to your enquiry basket and Uncle Storage will confirm current availability and lead time.
MikroTik KNOT LR9G kit specifications
| Product code | RB924iR-2nD-BT5&BG770A&R11e-LR9G |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9531 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| MicroUSB input Voltage | 5 V |
| Number of DC inputs | 3 (DC jack, PoE-IN, MicroUSB) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 23 W |
| Max power consumption without attachments | 6 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
| PoE-out ports | Ether2 |
| PoE out | 802.3af |
| Low voltage PoE-Out current limit | 650 mA |
| High voltage PoE-Out current limit | 450 mA |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| 10/100 Ethernet ports | 2 |
| Number of SIM slots | 1 Smart card (Nano SIM) |
| MiniPCI-e slots | 1 |
| Serial console port | RS485 |
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Bluetooth version | 5.2 |
| Bluetooth RF connector type | uUFL |
| Certification | FCC, IC, EAC |
| IP | 20 |
Need help choosing MikroTik hardware?
Tell Uncle Storage about your internet connection, user count, port speeds, PoE devices, wireless coverage and site-to-site requirements. We can help shortlist a practical MikroTik setup before you confirm your enquiry.
